Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module

Name: Large Scale 115m3H Ultra Pure Water Equipment For Semiconductor With EDI Module
Brand: HongJie
Price: 233900 USD

Brand Name : HongJie

Certification : ISO 14001,ISO 9001,CE,EPA

Place of Origin : Guangdong,China

MOQ : >=1sets

Price : US$233900~US$239500

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case

Model Number : HJ-UPWSe115T

Water Quality : Resistivity ≥15-18.25 MΩ·cm

Flow Rate : 115m³/H (Customizable)

Core Process : Double-pass Reverse Osmosis + EDI + Polishing Resin

Key Components : RO Membrane Modules, EDI Units

Electricity Supply : 380V

After-Sales Service : 2-Year Warranty

Operation Mode : Fully Automatic

Product Features : Stable Water Quality,Low Operation Cost,Reliable Performance

Contact Now

Large Scale 115m³/h ultra pure water equipment for Semiconductor with EDI module

I. Product Introduction

Ultra-Pure Water System for Semiconductor Industry
Designed specifically for precision cleaning in semiconductor manufacturing, our system delivers water purity that meets rigorous industry standards, including:

ASTM (American Society for Testing and Materials)
GB/T 11446.1-2013 (Chinese Electronic Grade Water Standards: 18MΩ·cm, 15MΩ·cm, 10MΩ·cm, 2MΩ·cm, 0.5MΩ·cm)
Semiconductor Equipment and Materials International (SEMI) Standards
Integrated Circuit (IC) Manufacturing Specifications

II. Process and Specifications of HJ-UPWSe115T

Standard Configuration:
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use

Process Highlights:

Multi-Stage Pretreatment: Removes particles, organics, and chlorine to protect RO membranes.
Dual RO System: Achieves salt rejection rate for consistent high-purity water.
EDI Technology: Continuous electro-deionization eliminates the need for chemical regeneration.
Polishing Resin: Final purification stage for ultralow TOC and ionic contaminants

III. Specifications

Item			Specification
Electricity Supply			380V
Produced Water Quality			Resistivity ≥15-18.25 MΩ·cm
Core Technology			Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components			RO Membrane Modules, EDI Units
Operation Mode			Full Automatic (PLC-controlled)
Product Features			Stable Water Quality,Low Operation Cost,Reliable Performance

After-Sales Service			2-Year Warranty For Standard Equipment

EDI Photo:

Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module

RO Photo:

Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module

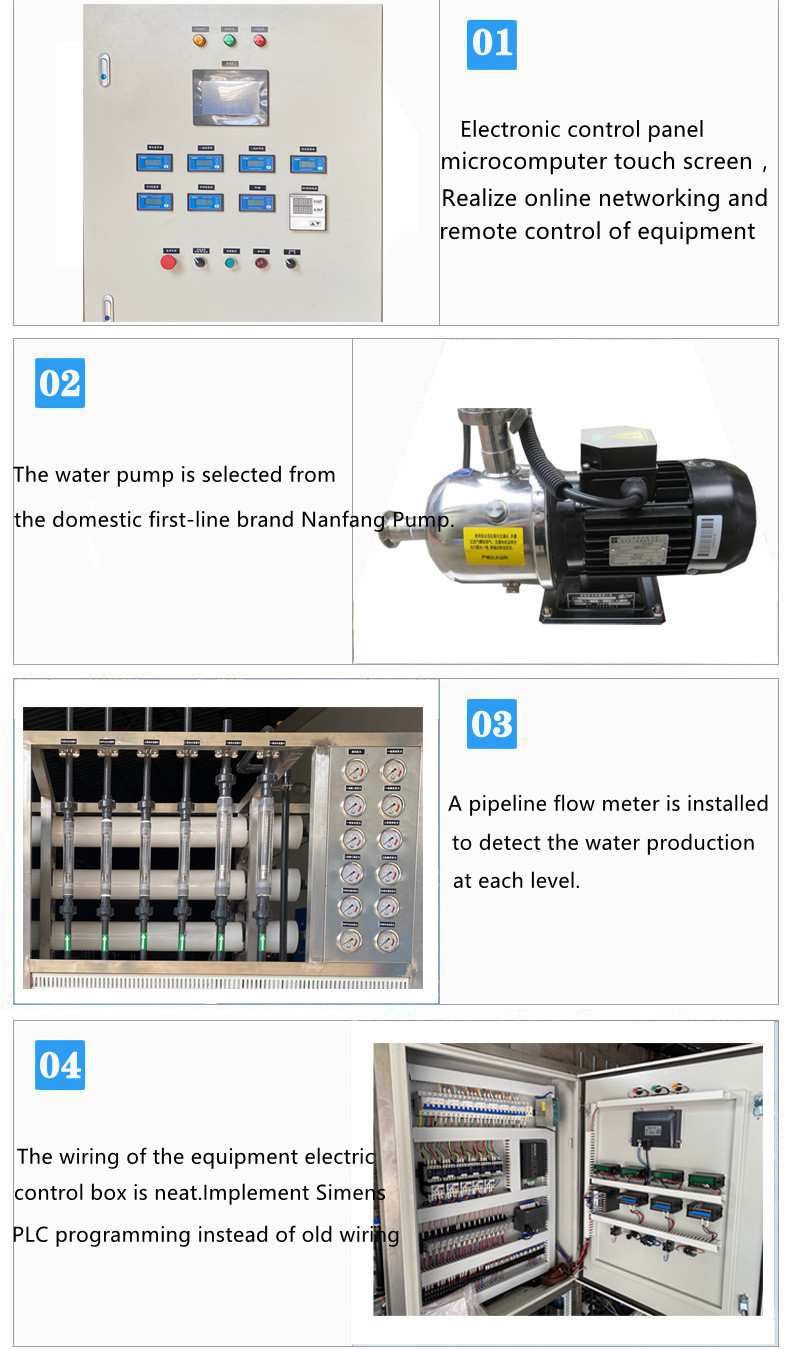

Details of other process equipment:

Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module

IV. Design Advantages

Fully Automated Control:
- Automatic backwash and regeneration cycles.
- Manual override option for maintenance.
Factory-Integrated Wiring:
- Pre-wired components reduce on-site installation time .
Advanced Maintenance Features:
- RO chemical cleaning system extends membrane life.
- Recirculation loops ensure water quality stability.
Premium Materials:
- 304 stainless steel and UPVC piping for corrosion resistance.
Intuitive Operation:
- Integrated control panel with real-time monitoring.
- Remote access option for troubleshooting.
Low Maintenance:
- Durable components designed for continuous operation.

Large Scale 115m3/H Ultra Pure Water Equipment For Semiconductor With EDI Module

V.Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
