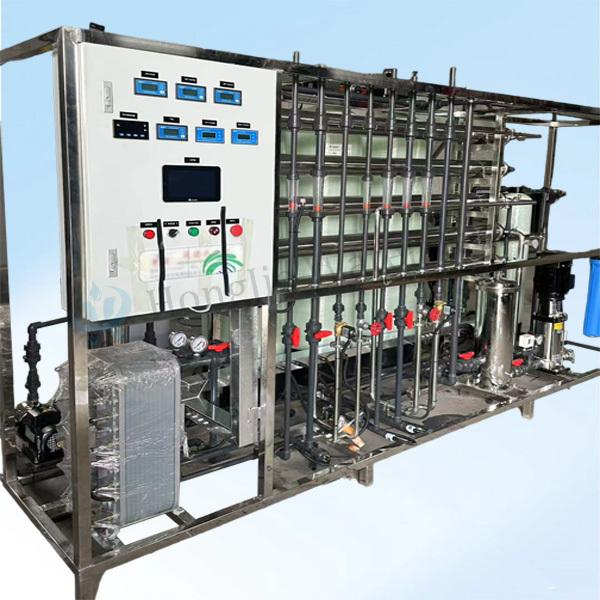

1 T/H Stainless Steel Ultrapure Water Equipment, Equipped With EDI
I.Products Description
| Water machine -1000Liter per hour |
| Inlet flow: | ≥1.5m3/h | Outlet flow: | 1000L per hour |
| Inlet pressure: | ≥2KG | Recovery rate: | 60-75% |
| Raw water Conductivity: | ≤300us/cm | Desalination rate: | 98% |
| RO output Conductivity: | ≤10us/cm | Power(380V,50HZ,3P or customized): | 2.3kw |
| Control model: | Automatic | Operating temperature: | 5-45℃ |
II.Reverse osmosis pure water filter technical characteristics
1. Utilizes the most advanced membrane technology, with core components sourced from the United States.
2. Advanced technology, mature processes, and rational design.
3. Automatic level and pressure control, with automatic opening and closing.
4. Advanced water shortage protection system.
III.Flow Chart
Raw water pump→Quartz sand filter→Activated carbon filter→Water softener/scaling inhibitor dosing system→Security filter→High pressure pump→Reverse osmosis system→Ultraviolet/ozone→Pure water supply point
ldentify needs
Clarify the following issues, you can determine the right equipment for you
Water quality problems
Example 1: sediment exceeds the standard / scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard / money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1.Daily Water Consumption:Just mail a bottle of water sample
2.Water Standard:Just tell me your industry.
3.Water Consumption:We can help you to calculate the water consumption.
