Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System

Name: Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System
Brand: HongJie
Price: 1 USD

Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System Manufactures

Brand Name : HongJie

Certification : ISO 14001,ISO 9001,CE,EPA

Place of Origin : Guangdong,China

MOQ : >=1sets

Price : negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : >300sets/month

Delivery Time : 10-15working days

Packaging Details : export standard wooden case

Product name : Ultra-pure Water Systems

Ultrafiltration plant : 30TH

Core Process : Double-pass Reverse Osmosis + EDI + Polishing Resin

Operation Mode : Fully Automatic

Application : Filtration

Processing : Pre-treatment+uf Filter

Contact Now

I. Product Introduction

Ultra-pure water equipment is a specialized device that employs multi-stage precision treatment processes to remove nearly all impurities from water, including ions, organic compounds, colloids, microorganisms, particles, etc., thereby producing ultra-pure water with extremely high resistivity (typically ≥18 MΩ·cm at 25°C). Its core objective is to meet the requirements of industries and fields that are extremely sensitive to water quality, such as semiconductors, pharmaceuticals, precision electronics, and high-end scientific research.

II. Design Standards & Compliance

Custom Engineering: Based on your detailed water analysis report.
Industry Certifications:
- NB/T 10790-2021 (Technical Specifications for Water Treatment Equipment)
- GB/T 19249-2017 (Reverse Osmosis Water Treatment Equipment)
- IEC 439-1 (Low Voltage Switchgear and Controlgear Assemblies)
- GB 6682-2008 (Laboratory Ultra-Pure Water Standards)
- GB/T 11446.1-2013 (Electronic Grade Water Specifications)

III. Process Flow Diagram

Standard Configuration:
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use

Process Highlights:

Multi-Stage Pretreatment: Removes particles, organics, and chlorine to protect RO membranes.
Dual RO System: Achieves salt rejection rate for consistent high-purity water.
EDI Technology: Continuous electro-deionization eliminates the need for chemical regeneration.

Polishing Resin: Final purification stage for ultralow TOC and ionic contaminants

Specifications

Item			Specification
Electricity Supply			380V
Productivity			30TH
Core Technology			Double-stage Reverse Osmosis (RO)
Key Components			RO Membrane Modules
Operation Mode			Full Automatic (PLC-controlled)
Product Features			Stable Water Quality,Low Operation Cost,Reliable Performance

After-Sales Service			2-Year Warranty For Standard Equipment

IV. Design Advantages

Fully Automated Control:
- Automatic backwash and regeneration cycles.
- Manual override option for maintenance.
Factory-Integrated Wiring:
- Pre-wired components reduce on-site installation time .
Advanced Maintenance Features:
- RO chemical cleaning system extends membrane life.
- Recirculation loops ensure water quality stability.
Premium Materials:
- 304 stainless steel and UPVC piping for corrosion resistance.
Intuitive Operation:
- Integrated control panel with real-time monitoring.
- Remote access option for troubleshooting.
Low Maintenance:
- Durable components designed for continuous operation.

Photoes:

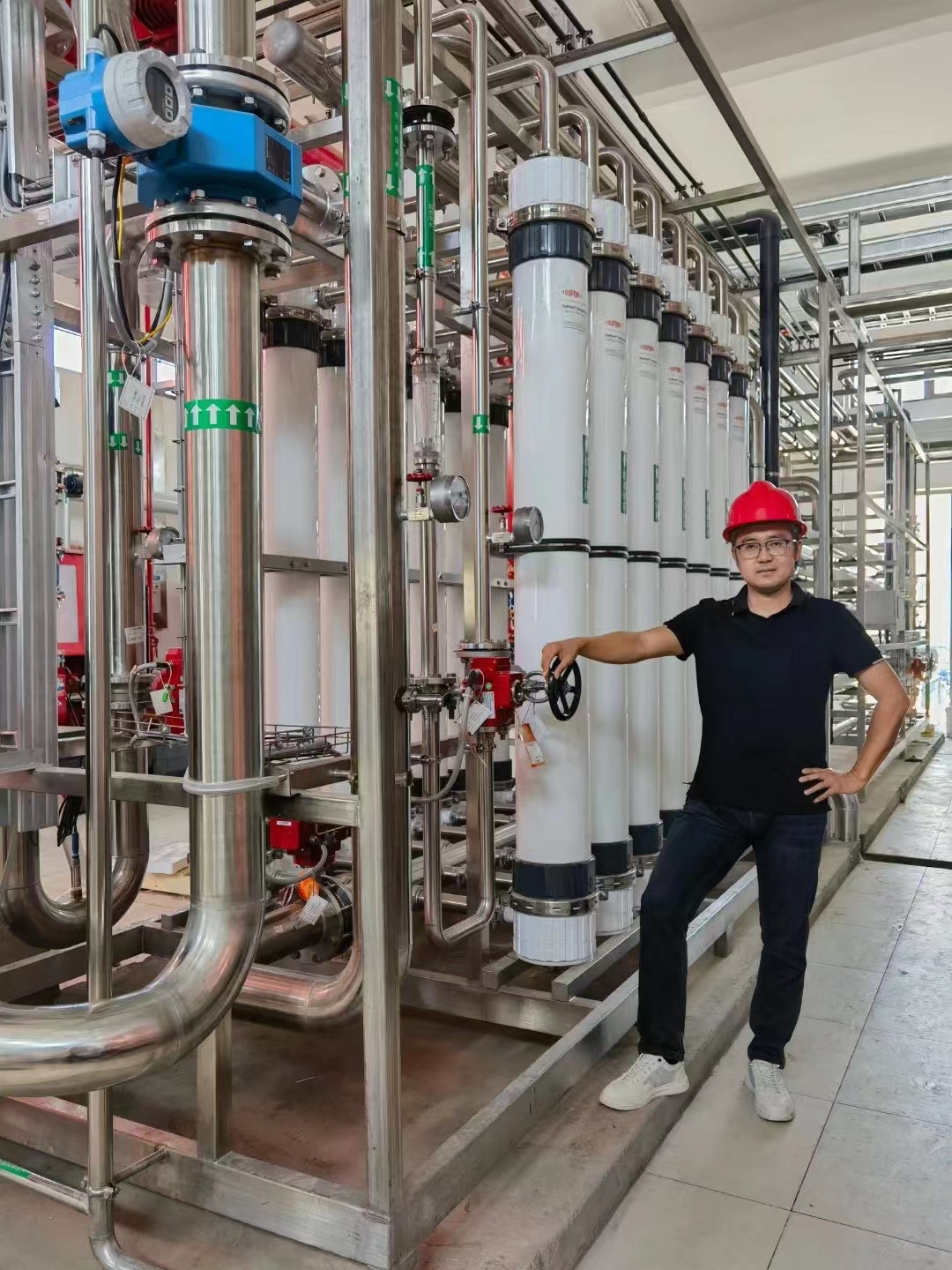

30T ion exchange equipment

Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System

Contact us today to discuss your specific requirements and receive a customized solution proposal.

Hongjie Water Technology - Your Trusted Partner for Semiconductor Ultra-Pure Water Solutions
