SUS304 Water Tank 300GPM Industrial Reverse Osmosis Systems Custom Made

Shenzhen HongJie Water Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SUS304 Water Tank 300GPM Industrial Reverse Osmosis Systems Custom Made

  • 1
  • 2

Brand Name : HongJie

Model Number : HJ-RO300GPM

Certification : ISO 14001,ISO 9001,CE,EPA

Place of Origin : Shenzhen,China

MOQ : >=1sets

Price : US$154000~US$159500

Payment Terms : T/T

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case

Flow Rate : 300GPM(customizable )

Produced Water Quality : Conductivity < 10μs/cm

Core Technology : Reverse Osmosis (RO)

Key Components : RO Membrane Modules

Operation Mode : Full Automatic (PLC-controlled)

Warranty : 2-Year Warranty (excluding Consumables)

After-Sales Service : Online support

Heat Removal Rate : 98%

Contact Now

Custom-made SUS-304 water tank 300GPM reverse osmosis system

I. RO System Description

Reverse osmosis technology is a physical separation process for water purification through a semi-permeable membrane. Its core principle is to utilize the selective permeability of the semi-permeable membrane. Driven by a pressure higher than the osmotic pressure of the solution, water molecules are allowed to pass through the membrane, while impurities such as ions, organic matters, colloids, bacteria, and viruses in the water are retained, thereby achieving water purification.

II. Process and Specifications of HJ-RO300GPM

1.Standard Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point
2.Enhanced Path:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point

Deatails of process equipment
Name Container Brand Usage
Pressurized Pump SUS-304 CNP Provide initial water source power
Multimedia Filter Stainless steel, carbon steel,or FRP China Provide pre-treated and purified water source
Activated Carbon Filter Stainless steel, carbon steel, or FRP China Remove sediments, manganese, rust, colloidal substances, and other particles larger than 20 μm
Water Softener SUS-304 China Eliminates calcium ions (Ca²⁺) and magnesium ions (Mg²⁺)
Precision Filter SUS-304 China Remove fine particles and tiny colloidal particles from water, reducing its turbidity to 1 degree
Intermediate Tank SUS-304 China Temporarily stores the effluent from the previous treatment process
Purified Water Tank SUS-304 China Store the purified water after treatment
Pure Water Pump SUS-304 CNP Pressurizes and delivers the treated purified water to each water-using point
RO Membrane BW30PRO-365 USA,Dupont Removes dissolved salts, organic matters, bacteria, viruses and other impurities from water to produce high-purity purified water.
UV Sterilizer 100w*2 China Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water
Microporous Filter SUS-304 China Intercepts impurities such as particles, colloids, bacteria, and organic matters in water with a particle size larger than 0.1-10μm

III. Design Advantages

Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.

VI. Design Standards and Compliance

Tailored Solutions: Customized designs based on your detailed water quality report, ensuring a perfect fit for your process.
National Food Safety Standards: Compliant with GB 19298-2014 (Packaged Drinking Water) and GB 14881-2013 (General Hygienic Practices for Food Production).
Industry Specifications: Aligned with JB/T 2932-1999 (Water Treatment Equipment), CJ/T119-2000 (RO Systems), and GB/T 12771-2019 (Stainless Steel Piping).

Product display

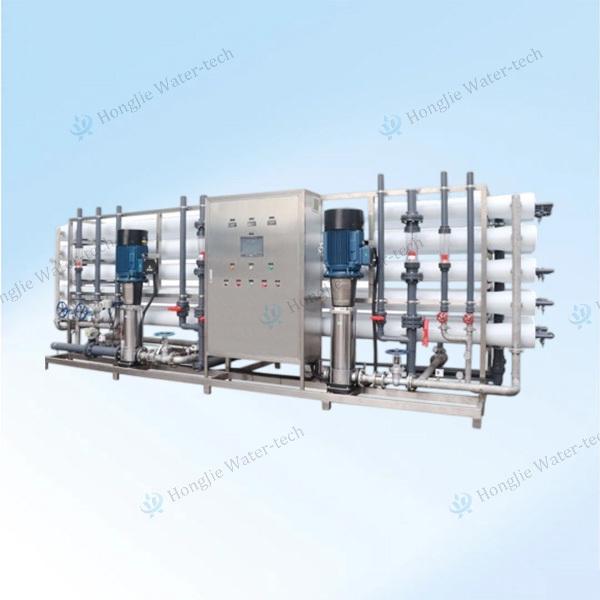

SUS304 Water Tank 300GPM Industrial Reverse Osmosis Systems Custom Made

SUS304 Water Tank 300GPM Industrial Reverse Osmosis Systems Custom Made

SUS304 Water Tank 300GPM Industrial Reverse Osmosis Systems Custom Made

V. Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
